PAPER MAKING ROLLS

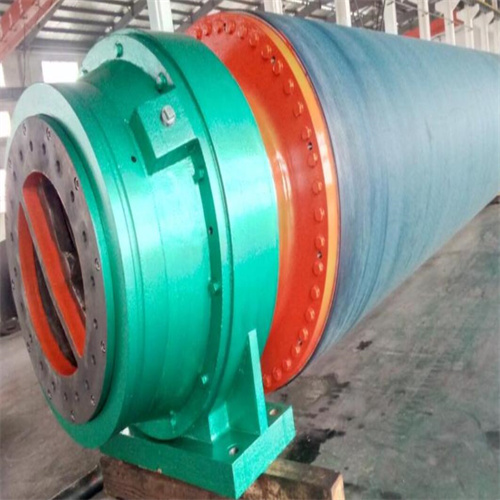

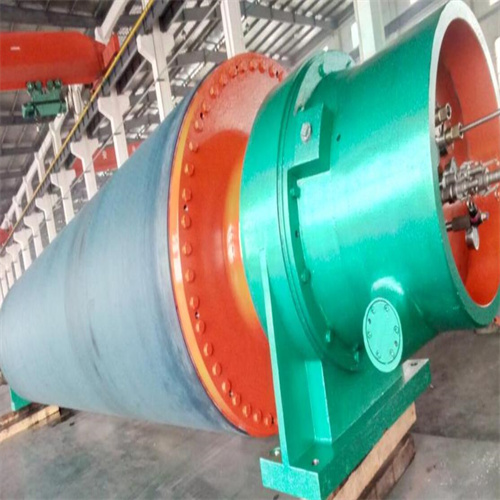

Suction Couch Roll

DESCRIPTION

Suction Couch Roll For transferring sheets, usually from a forming wire to a felt.
Roller body specification range Roller
1. outer diameter: Min-450mm, Max-1600mm
2. Roller body wall thickness: Min-30mm, Max-100mm
3. Roller body surface width: Min-1700mm, MAX-11000mm
4. Aperture diameter: Min-3mm, Max-13mm
5. Punching Area: Min-450mm, MAX-10000mm Design
6. Speed: 250-2000m/min.



Features Of Paper Making Rolls
Suction Couch Roll For Paper Machine Engineering
1. Linear pressure reaches 380KN/M,
2. coated surface: 21-23% tapping area
3. Speed: 1000mpm

A special bonding system ensures the safety under high speed and high linear pressure operation;
Excellent synthetic performance rubber ensures good wear resistance, nip modality stability which helps obtain paper sheet properties
