Thickener and Washer

Gravity Cylinder Thickener

DESCRIPTION

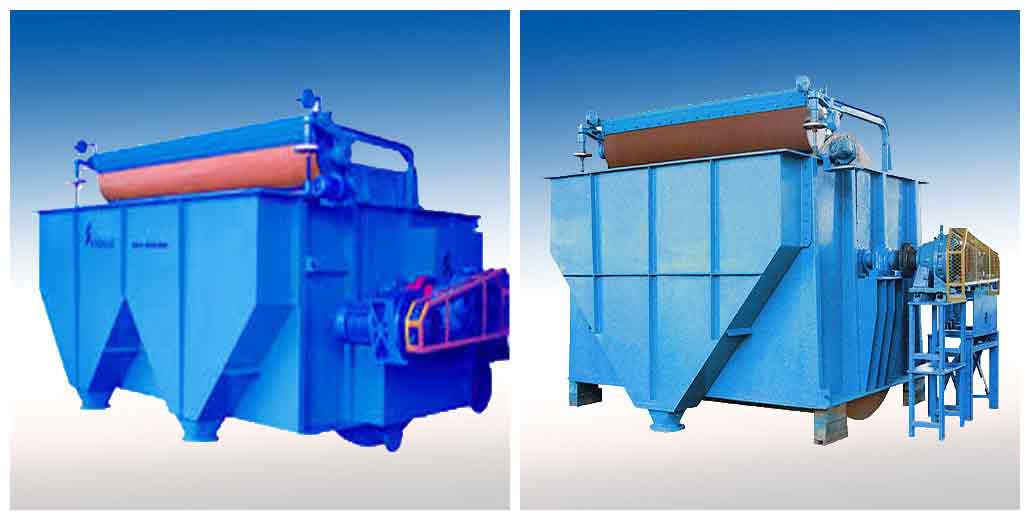

Gravity Cylinder Thickener

Application:
Used for washing and thickening low consistency pulp.

Features:
Except for having the same characteristics as the gravity cylinder thickener,
this machine has yet such characteristics as high rigidity of web cylinder and large equipping cap.

Main Technical Parameters:

Type		HT-4025	HT-4525	HT-5030	HT-5530	HT-6030
Filtrating area: m2		40	45	50	55	60
Density of inflow pulp: %		0.5 - 1
Density of outflow pulp: %		4 - 6
Capacity	Rich-wheat-staw pulp: t/d	40-60	45-67	50-75	55-82	60-90
	Mixed waste paper: t/d	60-80	67-90	75-100	82-110	90-120
	Reed pulp: t/d	80-100	90-112	100-125	110-137	120-150
	Chemical wood pulp: t/d	120-140	135-157	150-175	165-192	180-210
Power of motor: kw		15	18.5			22
