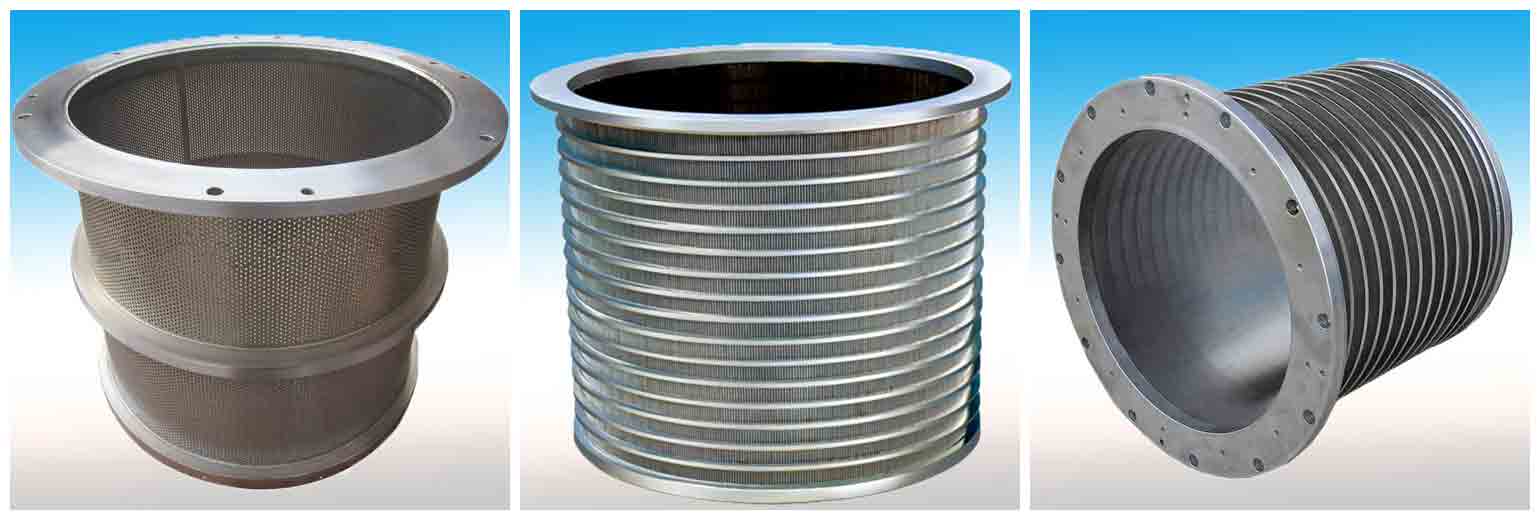

Screen Basket
For screen baskets, we supply pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.
Features:
Rugged, high mechanical strength; Available for outward and inward flow screens; Precise slot-width tolerance
Main Technical Parameters:
| Model NO. | Screen Area m2 |
Hole Size mm |
Slot Size mm |
Screen Hole t/d |
Screen Slot t/d |
Inlet Pulp Density % |
Motor Power kw |
| HT0.3 | 0.3 | φ1.6-φ3.5 | 0.1-0.6 | 40-70 | 30-50 | 1-4 | 22-55 |
| HT0.6 | 0.6 | φ1.6-φ3.5 | 0.1-0.6 | 80-150 | 60-100 | 1-4 | 30-75 |
| HT0.9 | 0.9 | φ1.6-φ3.5 | 0.1-0.6 | 130-250 | 60-150 | 1-4 | 37-90 |
| HT1.2 | 1.2 | φ1.6-φ3.5 | 0.1-0.6 | 150-320 | 80-190 | 1-4 | 45-110 |
| HT1.5 | 1.5 | φ1.6-φ3.5 | 0.1-0.6 | 180-380 | 100-230 | 1-4 | 55-132 |
| HT2 | 2 | φ1.6-φ3.5 | 0.1-0.6 | 220-500 | 120-300 | 1-4 | 75-160 |
| HT3 | 3 | φ1.6-φ3.5 | 0.1-0.6 | 380-600 | 160-450 | 1-4 | 90-220 |
| HT4 | 4 | φ1.6-φ3.5 | 0.1-0.6 | 400-800 | 250-730 | 1-4 | 132-280 |
