Inflow Pre-net Screen

DESCRIPTION

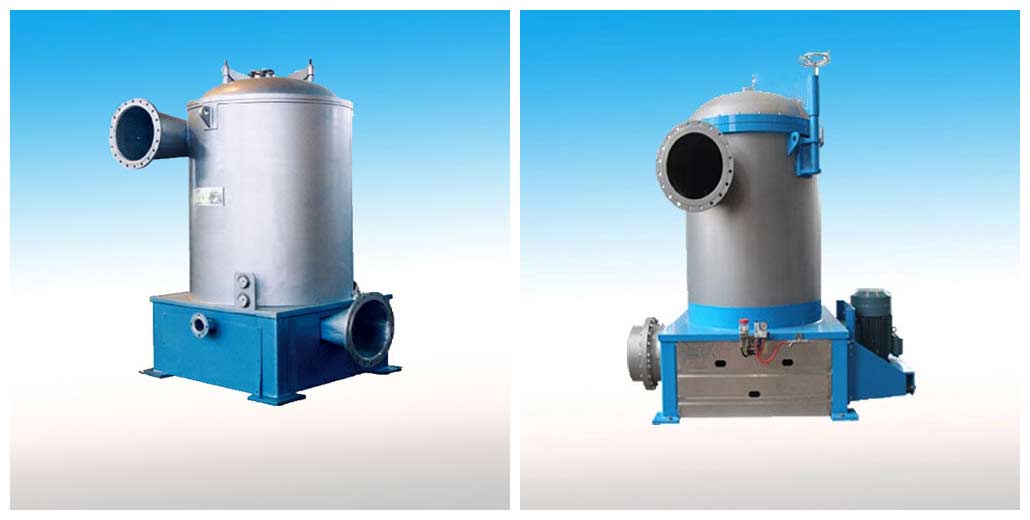

Inflow Pre-net Screen /Inflow Approach Screen

Application:
It is mainly used for the screening of low-consistency pulp before the paper machine. It can effectively remove impurities and break up the pulp materials to increase paper quality.

Features:
The upside-down core structure ensures a steady speed of pulp passing through the screen slot; a wide accepted pulp outlet makes the pulse decrease quickly; Heavy particles and impurities flow in the outer area of the screen, and the screen will not be blocked; High capacity & low energy consumption.

Main Technical Parameters:

Type	HT-71	HT-72	HT-73	HT-74	HT-75	HT-76
Screen area: m2	0.8	1.5	2.5	3.5	4.5	6
Screen Density: %	0.2 - 0.8
Range of the screen hole: mm	φ1.2 -- φ2.0
Range of screen slot: mm	0.20 -- 0.50
Flow rate: L/S	60-150	100-270	180-470	250-680	320-880	480-1280
Power of motor: kw	18.5/22	30/37	37/45	45/55	55/75	90/110
