Floatating-Dispersering-Bleaching

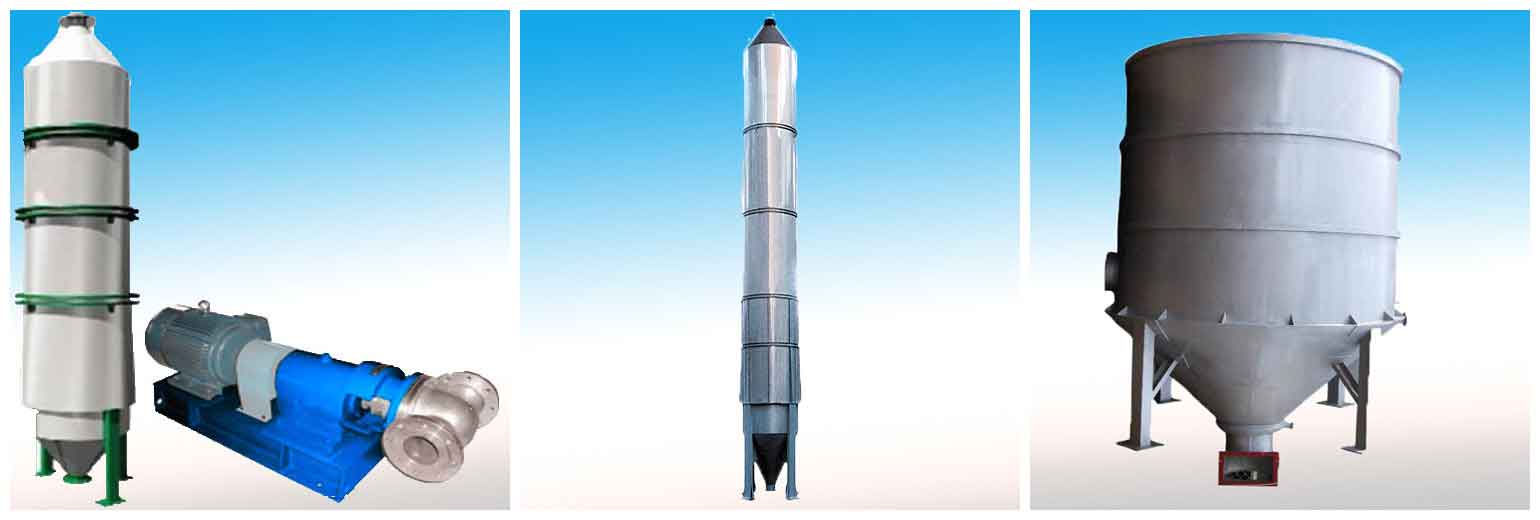

Bleaching Tower

DESCRIPTION

1. M.C. Bleaching Tower

Application:
Used in medium consistency bleaching process stage of paper and pulp industry for bleaching pulp, mainly for bleaching of waste pulp.

Features:
Special tower body structure is beneficial to whole rise of pulp and can prevent pulp from staying in tower body. Pulp-baffling assembly inside tower body is beneficial to uniform distribution of pulp.

Main Technical Parameters:

Type	Specification m3	Bleaching Temperation ℃	Bleaching Density %	Bleaching Time min	Processing Capacity t/d	Dia of Tower mm	Height of 10500 Tower 9850r mm
HT31	15	60	8-12	20-30	40-60	1600	9250
HT32	25				80-120	2000
HT33	45				120-180	2600

2. High Consistency Bleaching Tower

Application:
Used in down-flow H.C.H₂O₂ bleaching of the waste paper deinking pup, wooden pulp, and other pulp.

Features:
Tapered design, no short-circuiting. Live bottom design of dilution zone realize high consistency bleaching and discharge of low consistency, make process simple.

Main Technical Parameters:

Type	HT-41	HT-42	HT-43	HT-44
Normal volume: m3	50	70	100	150
Pulp Density: %	28 - 32
Bleaching Temperaton: ℃	60 - 70
Bleaching Time: min	60 - 90
Capacity: t/d	50-80	80-120	120-170	150-260
Power of motor: kw	30	30x2	37x2	37x2
