Floatating-Dispersering-Bleaching

Disc Heat-Disperser

DESCRIPTION

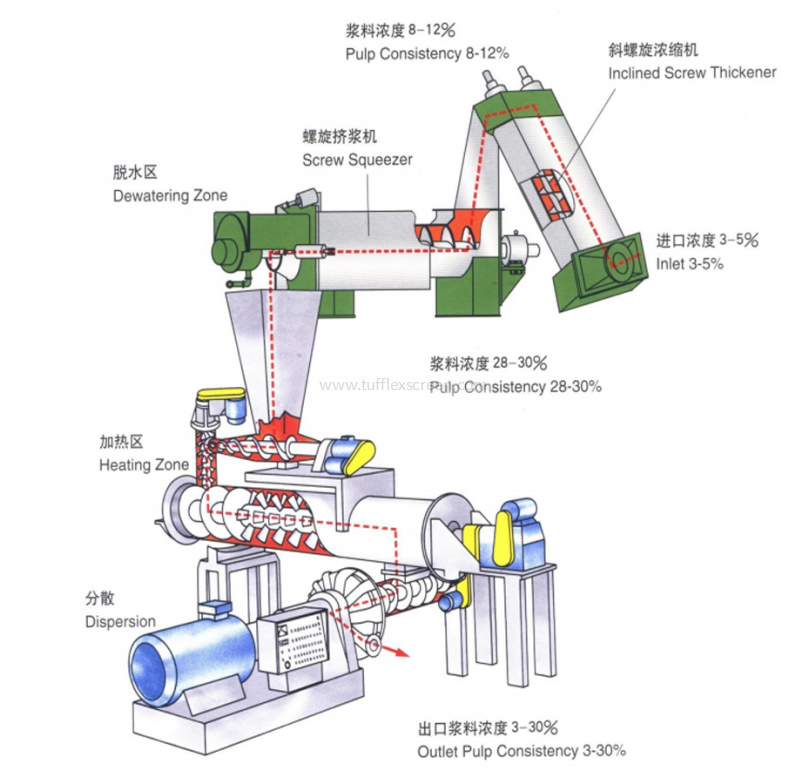

Disc Heat-Disperser

Application:
This equipment applies to the treatment of all kinds of pulp using waste paper as raw materials, being able to efficiently disperse all kinds of ink and treat all kinds of stickies and other impurities.

Features:
The clearance between dynamic disc and static disc can be set within a certain range, which can achieve running under a smaller clearance and is more beneficial to separating ink adhering to fiber and dispersing dirt speckles, stickies, and paint particles.

Main Technical Parameters:

Type	HT-1	HT-2	HT-3
Normal DIameter: mm	φ450	φ710	φ1050
Density of inflow pulp: %	25 - 30
Density of outflow pulp: %	4 - 12
Density of outflow pulp: %	25 - 30
Treating temperature: ℃	110 - 120 (AOCC)
Treating temperature: ℃	80 - 90 (ONP)
Capacity: t/d	30-70	80-300	280-600
Power of main motor: kw	110-200	280-800	630-1250
Power of feeding screw: kw	5.5	5.5-11	11-18.5
Power of pulg screw: kw	15	22-45	55-90
Power of flutter: kw	5.5	5.5-11	15-18.5
Power of speedy heater: kw	7.5	7.5-22	30-45
