Upflow Fine Screen

DESCRIPTION

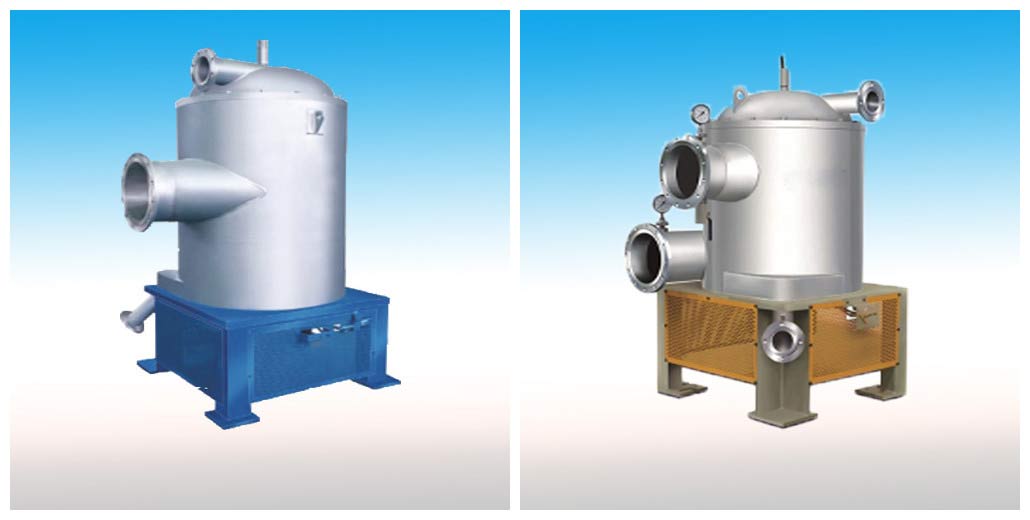

Up-flow pressure screen (Fine Screen), Upflow Fine Screen
Used for fine screening of waste paper stock.

Features:
This Pressure Screen changes the drop flow screening mode of traditional pressure screen, pulp inflow from the bottom, heavy impurities are blocked at the bottom and discharged out periodically, reduces the wear of screen cylinder and rotor, extends the service life of screen cylinder and rotor; In the process of pulp rising, fine light impurities are very easy to rise to the top and discharged out through tail pulp entrance, pulp through the strong cleaning of long rotor slice, screen quality, and capacity can improve greatly. Compared with the traditional Down-Flow Screen, the impurities percentage of good pulp reduce to about 30%. The top of this equipment has no rise device, be convenient for customers to check and overhaul the screen cylinder and rotor.

Main Technical Parameters:

Type	HT-100	HT-200	HT-300	HT-400	HT-500	HT-600	HT-700	HT-800
Screen area: m2	0.6	0.8	1.2	2	3.2	4.2	4.7	5.7
Hole diameter: mm	0.15 -- 0.35
Slot width: mm	0.12 -- 0.25
Screen density: %	0.8 - 2.0
Flow rate: t/d	35-60	50-80	80-130	130-220	200-350	270-500	310-550	360-650
Power of motor: kw	30	37	45	90	132	160	200	250
