When doctor blade service life becomes shorter than expected, changing the blade material is often the first solution considered by a paper mill.
However, the blade itself is only one part of the doctoring system.
A contaminated doctor holder, blocked shower nozzle, incorrect blade loading, unsuitable doctoring angle, malfunctioning oscillation mechanism or poor roll surface condition can all influence blade wear and doctoring performance.
For this reason, effective maintenance should consider the relationship between the doctor blade, holder, loading system, shower, oscillation mechanism and roll surface, rather than focusing only on blade material.
During a paper machine shutdown, maintenance personnel should remove paper lint, fibers, fillers, stickies, resin, coating residues and other deposits from both the doctor blade and doctor holder.
Clean water or warm water is generally suitable for routine cleaning.
When stubborn papermaking chemical deposits cannot be removed easily, a suitable cleaning agent may be selected according to the contaminant. Compatibility with the blade material, doctor holder and sealing components should be confirmed before use.
Strong acids, strong alkalis and aggressive solvents should not be applied without knowing whether the materials can tolerate them.
Hard deposits on the blade edge also require careful treatment.
Hammers, screwdrivers, steel chisels and similar hard tools should not be used to strike or forcibly scrape the working edge.
This is particularly important for glass-fiber and carbon-fiber composite doctor blades, where excessive mechanical force can cause chipping, delamination or microcracking.
The maintenance scope should also include:

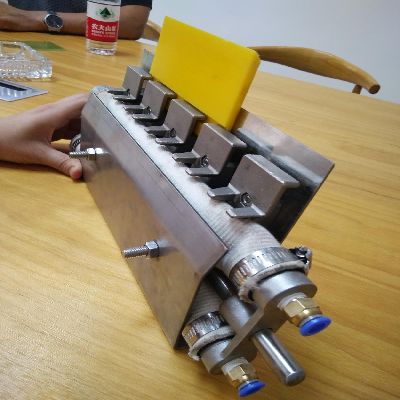

Blade Groove / Blade Slot
Loading Tube
Unloading Tube
Pivot / Hinge
Shower Pipe
Shower Nozzles
Stock accumulation inside the blade slot can prevent the blade from seating correctly. Consequently, uneven cross-machine loading may remain even after a new doctor blade has been installed.
For doctoring equipment fitted with showers, such as a DST Oscillating Double Doctor System with Shower, regular inspection of the shower system is essential.
Maintenance personnel should verify whether the nozzles are blocked and whether water is distributed uniformly across the machine width.
Shower pressure, water flow and nozzle direction should also be checked.
At the same time, attention should be paid to suspended solids in the shower water, scale formation, fiber accumulation and drainage from the saveall or collection tray.
These inspections are particularly relevant to double doctor systems around the:
Couch Roll, Suction Roll and Press Roll.
When shower performance deteriorates, stock may accumulate locally around the doctoring area. This can lead to uneven wear along the blade working edge.
Doctor blades made from different materials should not automatically receive the same cleaning treatment.
After cleaning, avoid leaving the blade wet for prolonged periods. Rust and corrosion along the working edge should be inspected carefully.
Stainless steel provides better corrosion resistance, but the working edge still requires inspection for wear and burr formation.
Avoid heavy impact, excessive bending and aggressive scraping. Delamination should be included in routine inspection.
Protect the blade edge from impact and inspect for cracking, chipping and layer separation.
Avoid cleaning solvents that may cause the material to swell or soften. Thermal deformation should also be checked.
Hard tools should not be used to scrape the coated surface. Inspect the blade for coating loss and edge chipping.
For glass-fiber and carbon-fiber composite blades, compatibility between the cleaning agent and the Epoxy Resin Matrix should also be considered.
Blade thickness alone should not be used to determine whether a doctor blade remains suitable for operation.
The Doctor Blade Working Edge often provides more useful information.
Under normal conditions, the wear profile should be reasonably uniform across the machine width.
When this is not the case, the wear pattern can help identify possible problems.
Heavy wear on one side may indicate an alignment problem with the doctor holder, an installation issue or an abnormal roll surface condition.
Greater wear in the center than at both edges may indicate uneven cross-machine loading or doctor holder deformation.
Deep grooves concentrated in one area can suggest that hard foreign material has entered between the blade and roll surface.
If the working edge is burnt or discolored, check:
Linear Pressure → Lubrication/Shower → Friction → Temperature
When a glass-fiber or carbon-fiber blade develops visible delamination or edge chipping, replacement is recommended rather than continuing operation until complete failure.
Applying more loading pressure is not necessarily the correct response when the roll surface is not being cleaned effectively.
Correct doctoring requires suitable:
Blade Loading / Doctor Loading
and:
Linear Pressure / Blade Loading Pressure
Too little loading may result in insufficient doctoring. Excessive loading, however, can accelerate wear and increase friction.
The possible progression is:
Excessive Loading → Accelerated Blade Wear → Frictional Heating → Roll Surface Wear → Increased Drive Load → Reduced Blade Service Life
Loading conditions should therefore follow the recommendations of the doctor system or equipment manufacturer.
The operating target should be uniform and appropriate blade-to-roll contact, rather than simply increasing pressure.
Doctoring Angle / Blade Angle is another important factor influencing blade performance.
Even when blade material and pneumatic pressure remain unchanged, a change in doctoring angle can alter the contact condition and wear rate.
This becomes particularly important when changing the blade's:
Material + Thickness + Stiffness

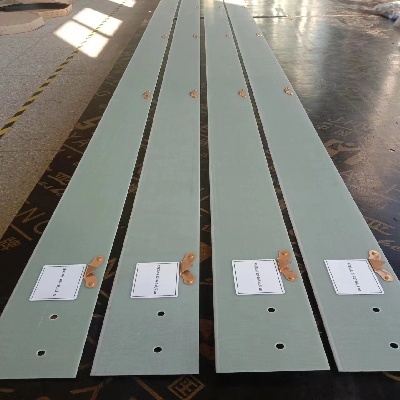

For example, replacing a conventional Glass Fiber Doctor Blade with a stiffer Carbon Fiber Doctor Blade should be followed by a review of the existing doctor settings.
The mill should recheck:
Doctoring Angle → Loading Pressure → Working Edge Contact Condition
A new blade material does not necessarily mean that the previous operating settings remain appropriate.

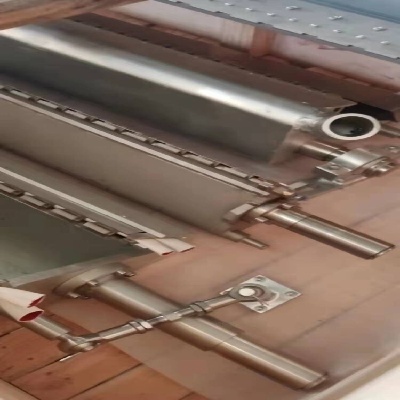

For an Oscillating Doctor or Oscillating Double Doctor, blade condition is only part of the maintenance requirement.
The oscillation system itself should also be inspected.
Important items include:
Oscillation Stroke
Oscillation Speed / Frequency
Oscillator
Guide / Linear Bearing
If the oscillation mechanism becomes stuck, the blade can remain in contact with the same location on the roll for an extended period.
This may contribute to localized wear bands or grooves.
Therefore, oscillation performance should be included in routine doctor system inspection.
Removing an old blade and immediately inserting a new one can leave the actual cause of poor doctoring unresolved.
A more systematic replacement procedure is:
Machine Shutdown & Pressure Release
→ Remove Old Doctor Blade
→ Clean Blade Slot
→ Inspect Doctor Holder
→ Check Roll Surface
→ Install New Doctor Blade
→ Verify Parallelism and Doctoring Angle
→ Apply Low Initial Loading
→ Observe Contact Across Machine Width
→ Gradually Adjust to Normal Operating Conditions
Before installation, confirm that the blade slot contains no old fibers, hardened filler deposits, rust or broken pieces of the previous blade.
A new doctor blade installed in a contaminated holder may still produce poor contact and uneven loading.
New doctor blades can have extremely sharp cut ends and edges.
Maintenance personnel should wear suitable cut-resistant gloves and safety glasses.
Blade replacement should also comply with the paper mill's shutdown and Lockout/Tagout (LOTO) procedures.
The purchase price of a doctor blade does not show its actual operating cost.
Huatao Group recommends establishing a Doctor Blade Maintenance Record for each relevant roll position.
The record can include:
Installation Date → Removal Date → Roll Position → Blade Material → Dimensions → Linear Pressure → Doctoring Angle → Paper Machine Speed → Service Life → Wear Pattern After Removal
After several blade replacement cycles, the mill can compare the actual performance of:
Glass Fiber vs. Carbon Fiber vs. Metal vs. Other Blade Materials
This provides a more practical basis for selecting the most economical blade for a particular roll position.
A lower-priced blade may not provide the lowest overall operating cost if it requires more frequent replacement or performs poorly under the actual doctoring conditions.
The essential maintenance principle can be summarized as follows:
Keep the doctor blade, doctor holder and roll surface clean; maintain uniform blade loading and the correct doctoring angle; regularly inspect blade wear, shower performance and oscillation.
In practical paper machine operation, reliable doctoring depends on the complete system:
Doctor Blade + Doctor Holder + Blade Loading + Doctoring Angle + Shower System + Oscillation + Roll Surface
Maintaining these components together can help support stable doctoring performance while reducing unnecessary blade wear and avoiding roll surface damage.
